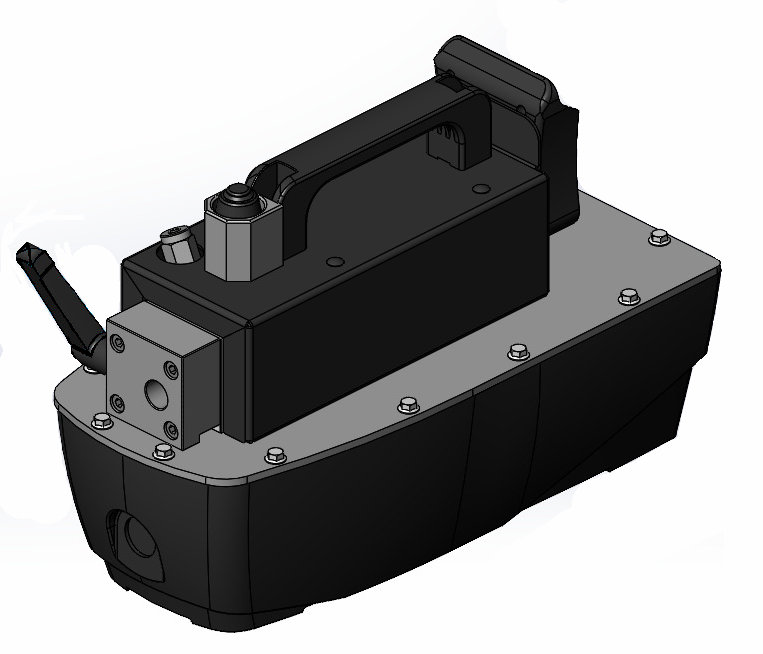

Electro-hydraulic battery pumps DBP series

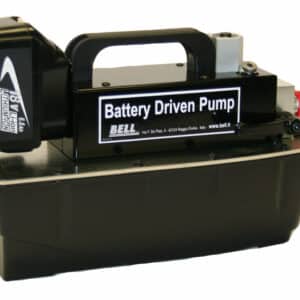

Electrohydraulic battery pumps, single acting with push button operation BDP series

The BDP series electro-hydraulic battery-operated pumps are powered by lithium-ion batteries and guarantee a longer life even in extreme working conditions.

These are electro-hydraulic power packs for high pressure without cables, the ideal solution for operations that require ease of transport, speed, precision and safety. In particular, they are ideal for outdoor applications without the possibility of external and indoor power supply where it is essential not to have obstacles during interventions.

Featuring an ultra compact and ergonomic design, they feature a carrying handle and shoulder strap, push button safety cover, lithium battery slot, oil fill cap and lever release valve.

BDP series: electro-hydraulic battery pumps

  • BDP700-06L – Electrohydraulic battery pump, single acting, push button operation, oil pressure min 20bar max 700bar, oil flow min 0,7 l / min max 0,06 l / min, tank capacity 0,6 L
  • BDP700-1L – Electrohydraulic battery pump, single acting, push button operation, oil pressure min 20bar max 700bar, oil flow min 0.7 l / min max 0.06 l / min, tank capacity 1 L
  • BDP700-5L – Battery operated hydraulic pump, single acting, push button operation, oil pressure min 20bar max 700bar, oil flow min 0.7 l / min max 0.06 l / min, tank capacity 5L
BDP Pompa elettrica con batteria al litio
BDP

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
