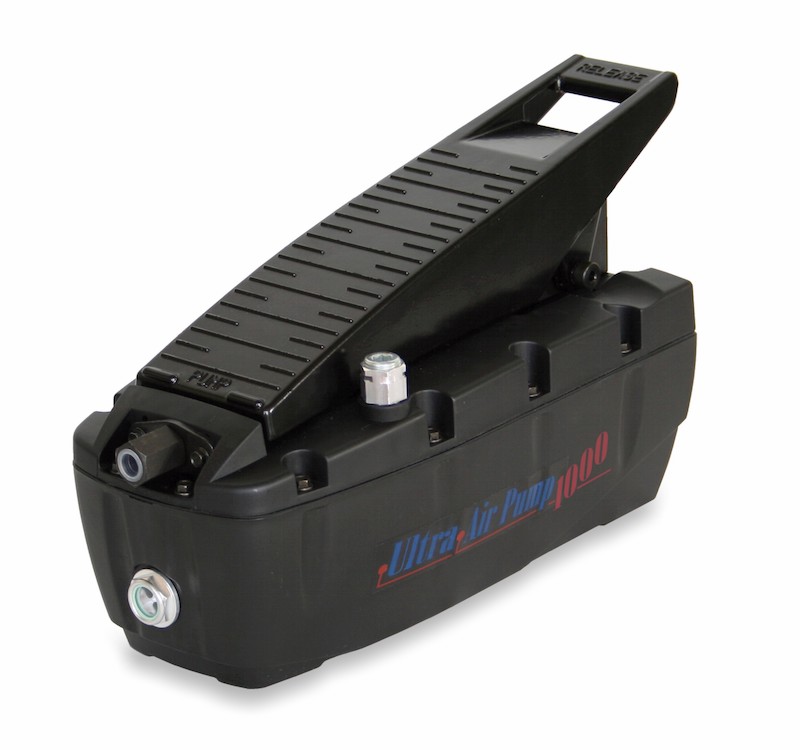

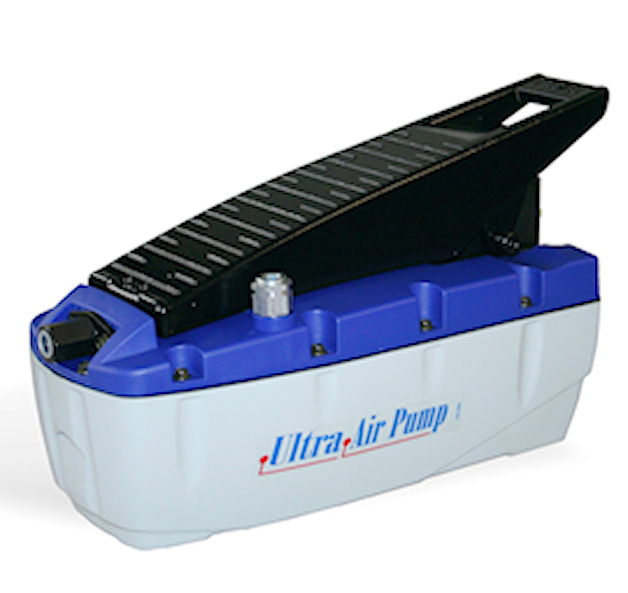

Foot operated air-hydraulic pumps

We design and manufacture foot-operated air-hydraulic pumps with oil flow rates from 2.6 to 0.25 l/min and working pressures up to 1000bar.

Available in multiple models, the UP Series UPF pumps guarantee high performance thanks to high working pressures (up to 1000bar), large flow rates (l/min) and large oil capacities (from 2.4L up to 20L).

UPF1002, Air-hydraulic pump, pedal operated, oil flow 0,14 (l/min) at 1.000bar

UPF702, Air-hydraulic pump, pedal operated, oil flow 0,15 (l/min) at 700bar

UPF502, Air-hydraulic pump, pedal operated, oil flow 0,20 (l/min) at 500bar

UPF402, Air-hydraulic pump, pedal operated, oil flow 0,25 (l/min) at 400bar

UPF252, Air-hydraulic pump, pedal operated, oil flow 0,7 (l/min) at 250bar

UPF702-2V, Air-hydraulic pump, double ball valve, pressure gauge, pedal operated, oil flow 0,15 (l/min) at 700bar

UPDPF705-16/5, Air-hydraulic pump, double linear piston, ultra-rapid advancements, single acting, pedal operated, oil flow 4.29 l / min (1st stage) and 0.29 l / min (2nd stage) at 250bar, working pressure up to 700bar

UPFD710, Air-hydraulic pump, double pneumatic motor, single acting, pedal operated (advance/hold/retract), oil tank capacity 10L, oil flow 0.26 l/min at 700bar (2nd stage)

UPFD725, Air-hydraulic pump, double pneumatic motor, single acting, pedal operated (advance/hold/retract), oil tank capacity 30L, oil flow 0.26 l/min at 700bar (2nd stage)

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
