EDPH700DE double acting electro-hydraulic power unit for high pressure

Among the electro-hydraulic power units of the EDP Series manufactured by BELL there is the EDPH700DE double stage and double acting pump for high pressure with an oil capacity of 5L.

Write us a request for more information

Description

Practical and functional, the ultra-compact EDPH700DE electro-hydraulic power pack is powered by AC 230V power source, it is double-stage and double-acting through a 4/3 way hand distributor valve, with a high flow rate and an operating pressure up to 700bar

Among the electro-hydraulic power units of the EDP Series manufactured by BELL there is the EDPH700DE double stage and double acting pump with an oil capacity of 5L. Push-button operated (electric motor) and a 4/3 way hand valve, it is recommended for any hydraulic application where an adequate oil flow rate (l / min) and an operating pressure up to 700bar are required. Functional and versatile, it has an extremely compact design with ergonomic handle and motor protection casing and is particularly suitable for guaranteeing maximum efficiency and long life, even in heavy use.

EDP Series:
Product line: Industrial tools, bodywork, auto repairers, lifting systems, clamping systems, punches, hydraulic cutters, bead breakers, shearing machines

Main features:

  • Ultra compact
  • Double HAWE piston pump with cylindrical shaft
  • Operation with external power supply (socket)
  • Motor protection casing for heavy duty and durability
  • Extremely compact design with ergonomic handle for maximum portability
  • Push button operation (electric motor)
  • Hand valve 4/3 700bar
  • Double acting cylinder compatibility
  • Easy maintenance
  • Refill oil cap
  • Preset internal maximum oil pressure output valve to protect the circuit parts against overloads
  • Pressure gauge
  • Extremely lightweight
  • Low noise
  • Oil tank capacity 5L

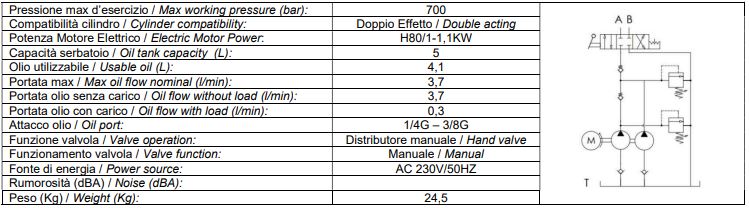

Technical features:

EDPHDE Centralina elettrica doppio effetto alta pressione

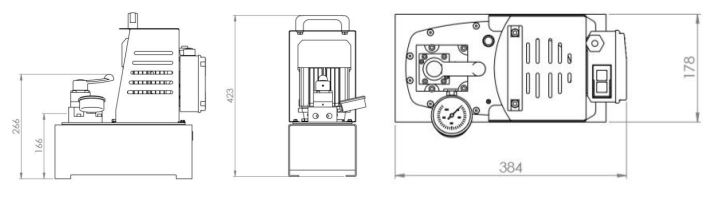

Size:

Oil flow (l/min) diagram:

diagrammamma di portata della pompa elettroidraulica a doppio effetto EDPH700DE

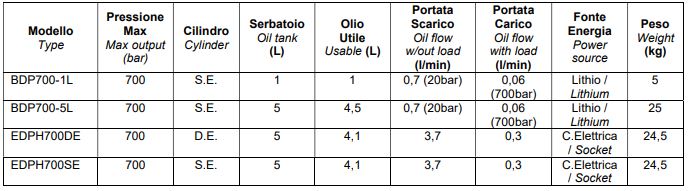

Series comparison

Pump accessories

  • Pressure gauge

Spare parts

  • SEAL KIT EDPH

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
