Description

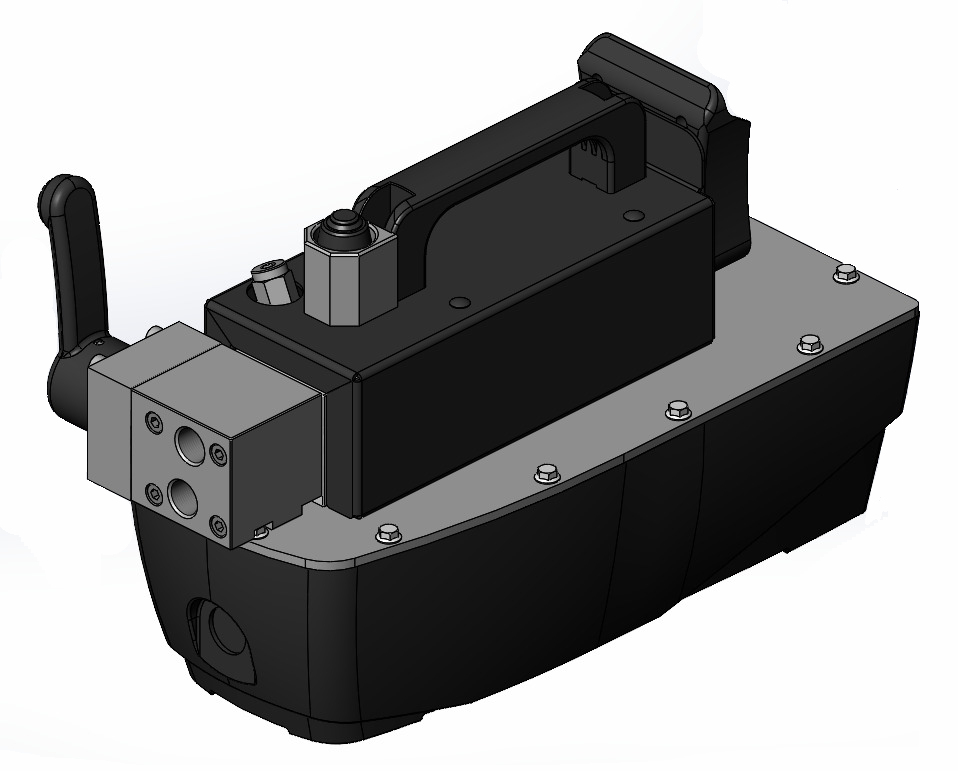

For quick operations in low and high pressure hydraulic applications, the efficiency of the battery-operated hydraulic pump of the BDP 700-0.6L Series

The BDP700-0.6L battery powered single-acting hydraulic pump is manually operated through a button switch. It has no power cables and external power supply but thanks to a lithium-ion battery it ensures maximum efficiency and durability over time. The compact design and comfortable shoulder strap make it easy to carry. Like all the pumps of our production of the BDP Series, this battery pump is suitable for low and high pressure hydraulic applications where a rapid and precise intervention is required.

Battery powered single acting hydraulic pump BDP700-0.6L: main features

BDP Series:
Product line: Industrial tools, bodywork, car repairers, lifting systems, clamping systems, punches, hydraulic cutters, bead breakers, shearing machines

• Manual operation without cables and external power supply
• Powered by 4.0Ah lithium-ion battery for heavy duty and long life
• Extremely compact design with ergonomic handle and shoulder strap for maximum portability
• Push button operation (advance and hold)
• Activation button safety cover
• Single acting cylinder compatibility
• Easy maintenanceFunzionamento sia in orizzontale che in verticale per un impiego versatile
• Oil filler cap
• Internal max relief valve to protect the circuit components
• Lever release valve for oil return to the tank
• Extremely lightweight
• Low Noise (very silent!)
• Oil tank capacity 0,6L-1L

Battery powered single acting hydraulic pump BDP700-0.6L: technical features

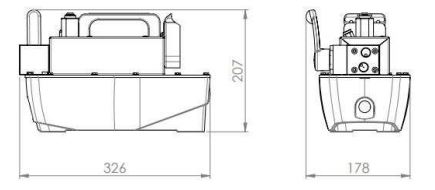

Size

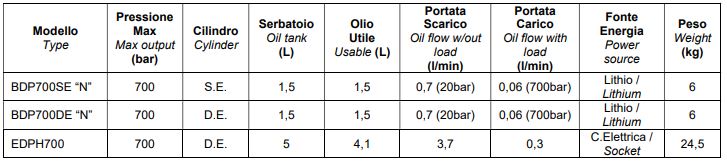

Series comparison

Pump accessories

• Carrying strap
• Lithium

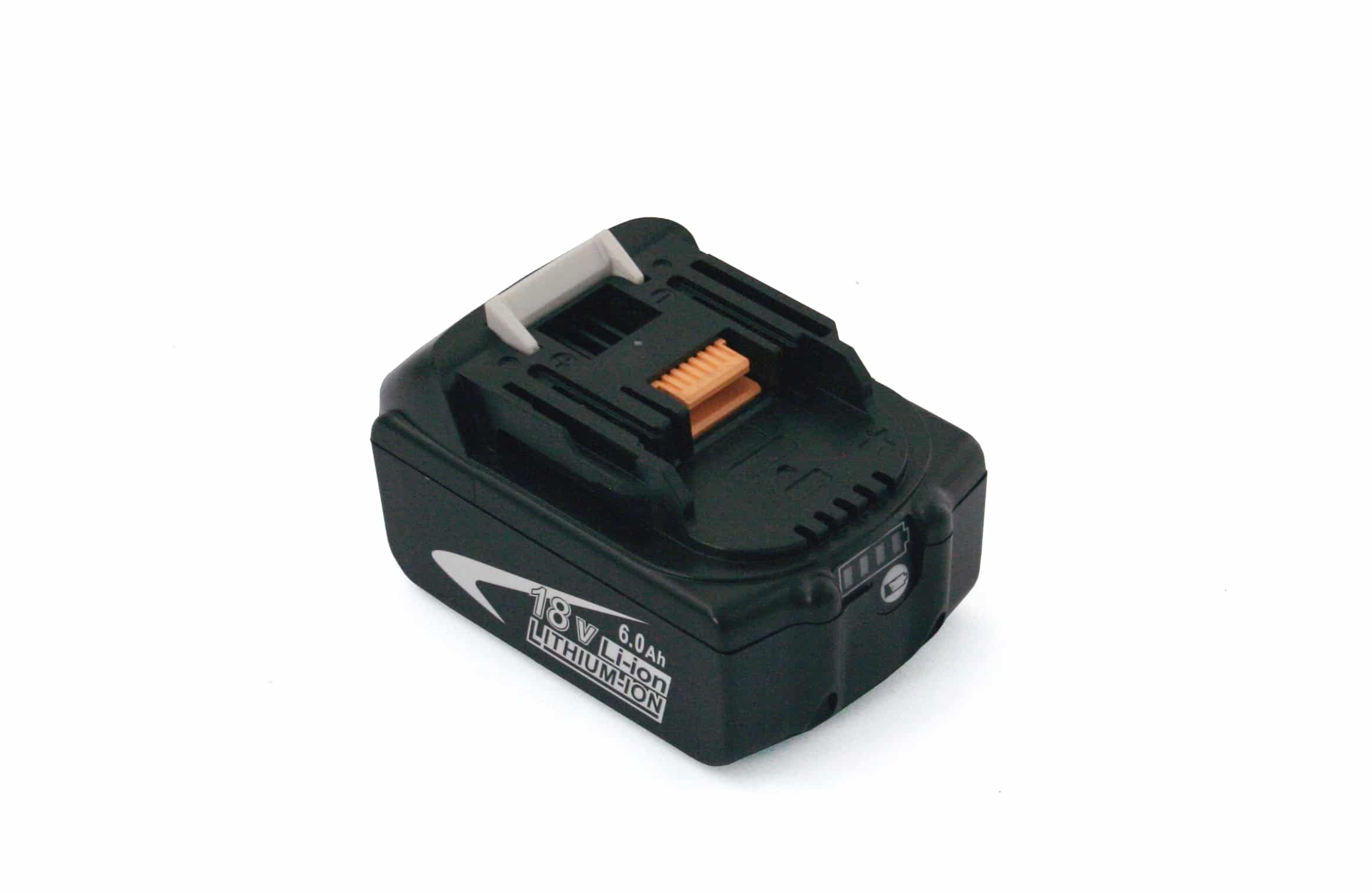

• battery 4.0Ah

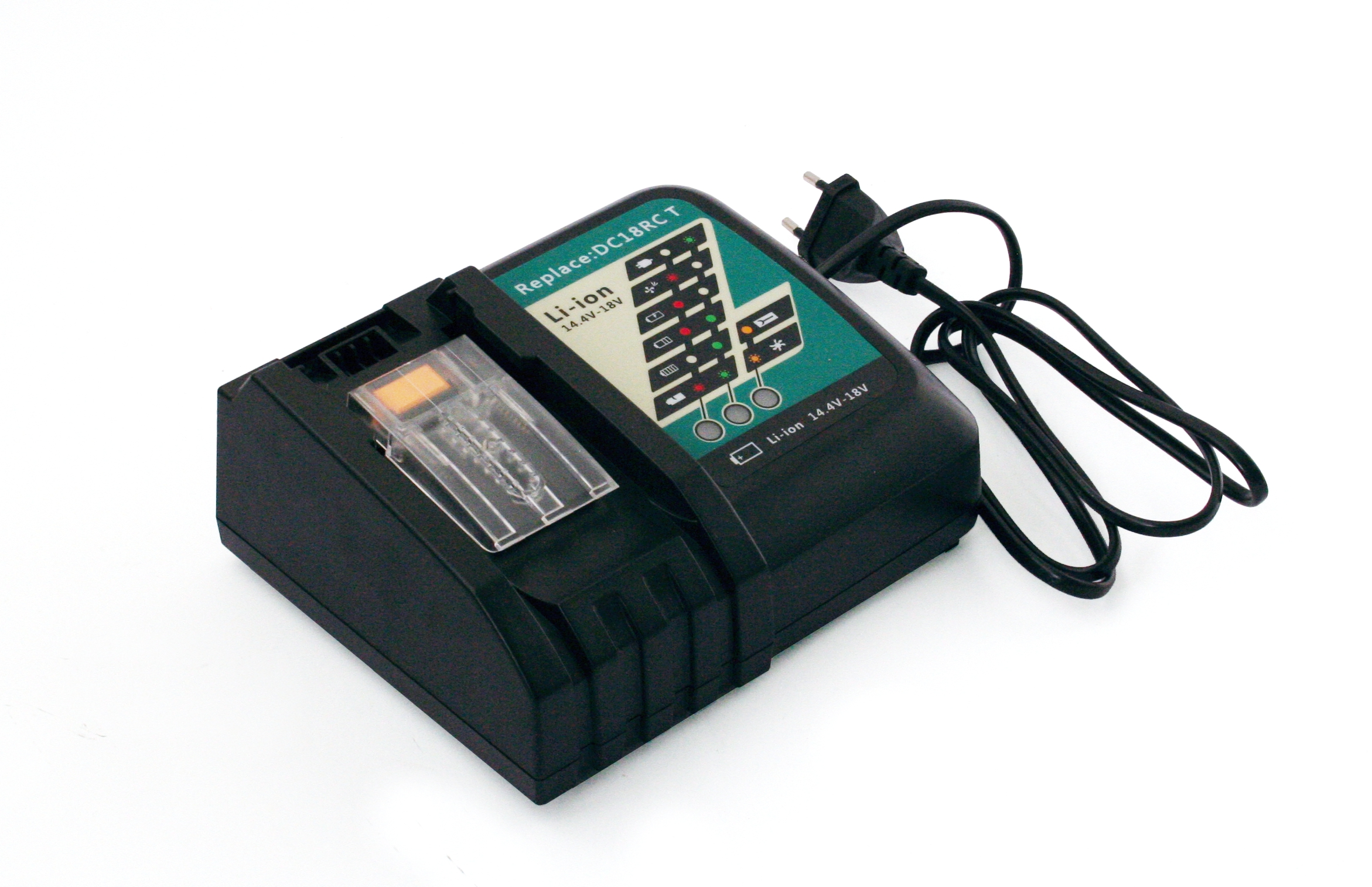

• Battery charger
• Fitting
• Hose flex

Spare parts

• SEAL KIT BDP-0.6L

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
