Description
UP-LEVER air-hydraulic pump operated throughwith a pneumatic hand lever with working pressures up to 1000bar UP Series
The UP-LEVER pump of the UP Series is a single-acting pump with a three-position pneumatic lever with a max working pressure of 1000bar
As well as for the entire UP Series pumps, the UP-LEVER can be applied in any hydraulic applications, especially in those where a high output pressure is required and the oil flow must be moderate and controlled, in order to ensure the maximum precision and performance during the operations.
UP-LEVER: main features
UP Series:
Product line: Industrial tools, lifting systems, car repairers, clamping systems, hydraulic equipment (presses, jacks, …), bead brakers, Automotive
- Pneumatic lever operation
- Lever operation with spring return (advance, hold and release)
- Single-acting cylinder compatibility (double-acting with optional in-line hand valve)
- Compact and robust construction for heavy duty and long durability
- Easy maintenance
- No air lubricated required
- It works through the normal pneumatic network
- Versatile use in both vertical and horizontal positions
- Vent screw on the lid for tank ventilation during use
- Relief safety valve on the lid
- Maximum oil pressure valve adjustable from the outside to protect the circuit components
- Removable pyrex porthole level indicator for maximum easy refill
- Slots on the base support for easy installation onto the application
- Lightweight
- Low noise (75dBa)
- Various oil tank capacities (2.4 – 5 – 10 – 20) L for small and large cylinders

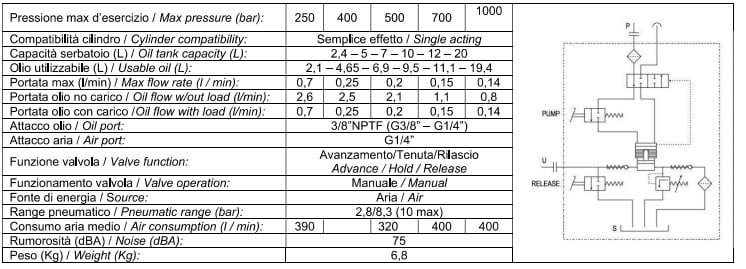

UP-LEVER: technical features

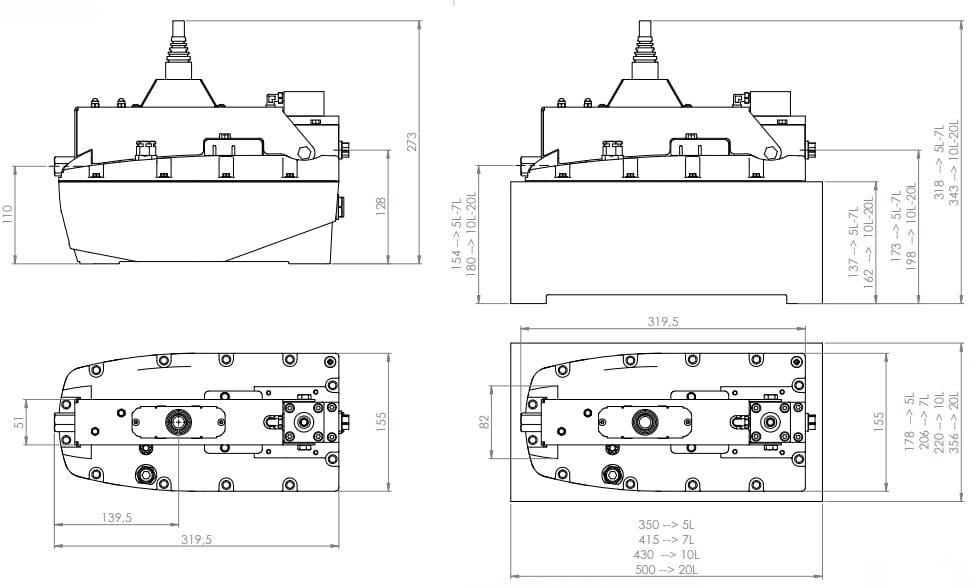

Size

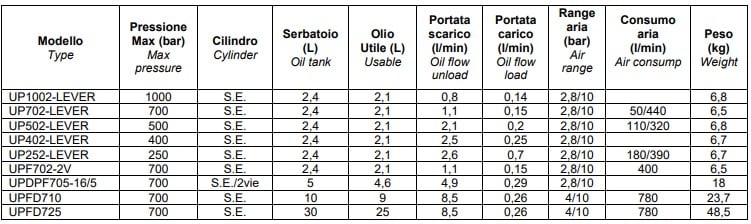

Series comparison
To order
- P/N 91520110X UP1002 1000BAR LEVER BELL
- P/N 915201850 UP702 700BAR LEVER BELL
- P/N 91520003X UP502 500BAR LEVER BELL
- P/N 91520098X UP402 400BAR LEVER BELL
Pump accessories
- Oversized tank
- Fixing plates
- Fittings
- Hose Flex
- In-line hand valve for double acting cylinders
Spare parts
- SEAL KIT UP-LEVER
All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
