Description

HFP2ST700DE :  Double stage foot or hand hydraulic pump for double acting actuators

The HFP2ST700DE pump of the HFP Series is light, sturdy and transportable for top-level performance and max durability thanks to specific anti-corrosion treatments, protective against the atmospheric agents.
Designed in combination with hydraulic applications with double-acting cylinders and high working pressures, they are suitable for Automotive wheeled lifts, hydraulic tools, hydraulic presses, clamping systems, hydraulic crimpers, pull benches.

Double stage, double effect hand foot operated hydraulic pump HFP2ST700DE: features

HFP Series:

• Lever or pedal operated
• Double stage for a very low effort on the lever and an increased efficiency
• Significant reduction of fatigue during operations
• Steel construction for maximum strength and durability
• Lightweight and compact
• Double effect cylinder compatibility
• 4/3 way hand valve included
• Compact and sturdy construction for heavy duty
• It does not require any pneumatic network, compressors or any other devices for operation
• Easy to handle and transport
• Working pressures up to 1.000bar
• Externally adjustable safety valves to protect against overloads
• Slide with slots for perfect stability and easy installation onto the application
• Light weight and overall dimensions.

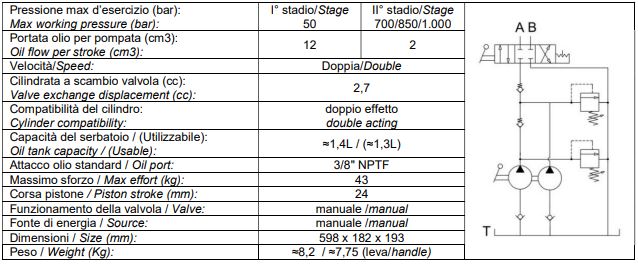

Double stage, double effect hand foot operated hydraulic pump HFP2ST700DE: technical features

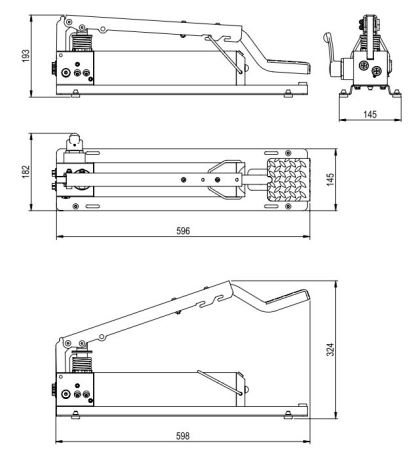

Size

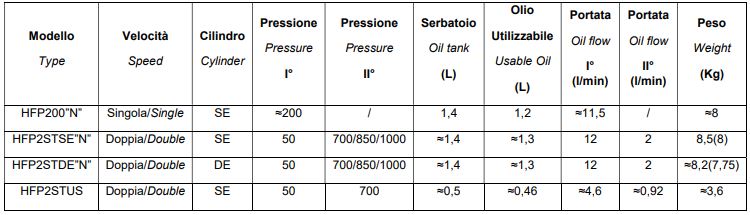

Series comparison

To order

• P/N 927020050 HFP2ST700DE 700BAR 1L HANDLE BELL
• P/N 927020030 HFP2ST700DE 700BAR 1L PEDAL BELL

Pump accessories

• Hose Flex
• Pressure gauge
• Support feet

Spare parts

• SEAL KIT HFP2ST

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World
