Description
Ultra-compact EDPL250SE electro-hydraulic power pack powered by AC 230V power source, gear pump, single-acting throughwith a 2 button remote pendant, with a high flow rate and constant working pressures up to 250bar
Among the electro-hydraulic power units of the EDP Series manufactured by BELL there is the EDPL250SE with a gear pump, single acting with an oil capacity of 5L. Push-button operated (electric motor) and a 2 button remote pendant, it is recommended for any hydraulic application where a constant oil flow rate (l/min) and an operating pressure up to 250bar are required. Functional and versatile, it has an extremely compact design with ergonomic handle and motor protection casing and is particularly suitable for guaranteeing maximum efficiency and long life, even in heavy use.
EDP Series:
Product line: Industrial tools, bodywork, auto repairers, lifting systems, clamping systems, punches, hydraulic cutters, bead breakers, shearing machines
Main features:
- Ultra compact
- Low pressure gear pump (max 250bar)
- Operation with external power supply (socket)
- Motor protection casing for heavy duty and durability
- Extremely compact design with ergonomic handle for maximum portability
- Push button operation (electric motor)
- 2 button solenoid remote pendant (advance / release)
- Single acting cylinder compatibility
- Easy maintenance
- Refill oil cap
- Preset internal maximum oil pressure output valve to protect the circuit parts against overloads
- Pressure gauge
- Oil tank capacity 5L
Technical features:

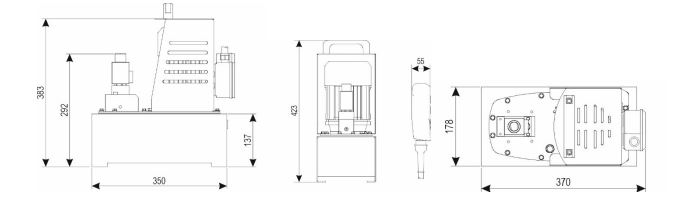

Size:
Oil flow (l/min) diagram:
Series comparison:
Pump accessories
- Pressure gauge
Spare parts
- SEAL KIT EDPL
All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
