DE double-acting air-hydraulic pumps with CETOP 3 flanged plate and 4-way 3-position lever distributor hand valves

High performance and efficiency thanks to oil pressures up to 1000bar and large oil flow rates (l/min). Oil tank capacities up to 30 liters

Produciamo CETOP 3 flanged double acting air-hydraulic pumps with single or double 4/3 lever distributor hand valve, also available with double pneumatic motor. Wide range of pump types for multiple fields of application.
Our UPM air-hydraulic pumps of the UP Series guarantee high performances thanks to high-quality parts and treatments, working pressures up to 1,000bar, large oil flow rates (l /min) and oil tank capacities up to 30L.

UPM SERIES

  1. UPM1002, Double-acting air-hydraulic pump with CETOP 3 flanged plate and 4/3 lever distributor hand valve, oil flow 0,14 (l/min) at 1.000bar
  2. UPM702, Double-acting air-hydraulic pump with CETOP 3 flanged plate and 4/3 lever distributor hand valve, oil flow 0,15 (l/min) at 700bar
  3. UPM502, Double-acting air-hydraulic pump with CETOP 3 flanged plate and 4/3 lever distributor hand valve, oil flow 0,20 (l/min) at 500bar
  4. UPM402, Double-acting air-hydraulic pump with CETOP 3 flanged plate and 4/3 lever distributor hand valve, oil flow 0,25 (l/min) at 400bar
  5. UPM252, Double-acting air-hydraulic pump with CETOP 3 flanged plate and 4/3 lever distributor hand valve, oil flow 0,7 (l/min) at 250bar

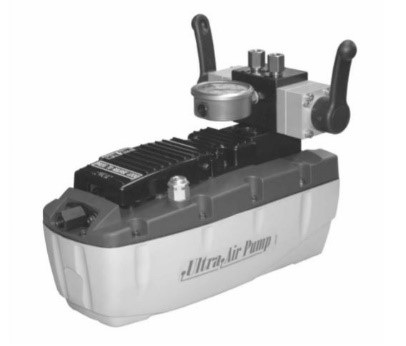

  6. UPM1002-2V, Double-acting air-hydraulic pump with double 4/3 lever distributor hand valve, pressure reducers and pressure gauge, oil flow 0,14 (l/min) at 1.000bar
  7. UPM702-2V, Double-acting air-hydraulic pump with double 4/3 lever distributor hand valve, pressure reducers and pressure gauge, oil flow 0,15 (l/min) at 700bar
  8. UPM502-2V, Double-acting air-hydraulic pump with double 4/3 lever distributor hand valve, pressure reducers and pressure gauge, oil flow 0,20 (l/min) at 500bar
  9. UPM402-2V, Double-acting air-hydraulic pump with double 4/3 lever distributor hand valve, pressure reducers and pressure gauge, oil flow 0,25 (l/min) at 400bar
  10. UPM252-2V, Double-acting air-hydraulic pump with double 4/3 lever distributor hand valve, pressure reducers and pressure gauge, oil flow 0,7 (l/min) at 250bar

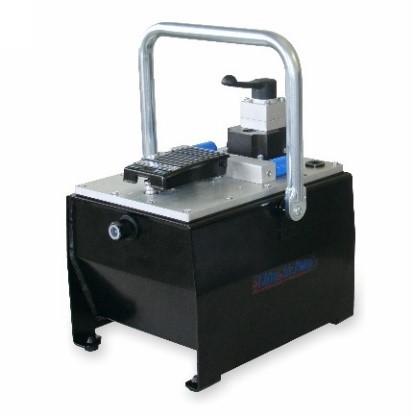

  11. UPMD710, Air-hydraulic foot pump, double pneumatic motor, double acting, pedal lock-up function, lever distributor valve (4/3), 10L tank capacity, 0.26 l / min oil flow at 700bar (2nd stage)

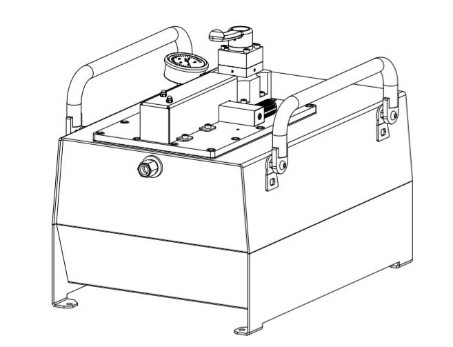

  12. UPMD725-RC, Air-hydraulic pump, double pneumatic motor, double acting, hand distributor valve (4/3), air inlet remotely controlled (RC optional), oil tank capacity 25L, oil flow 0.26 l / min at 700bar (2nd stage)

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
