Description

Ultra-compact EDPL250DE electro-hydraulic power pack powered by AC 230V power source, double acting operated throughwith a 4/3 hand distributor valve, with a low pressure gear pump up to 250bar and a constant oil flow rate

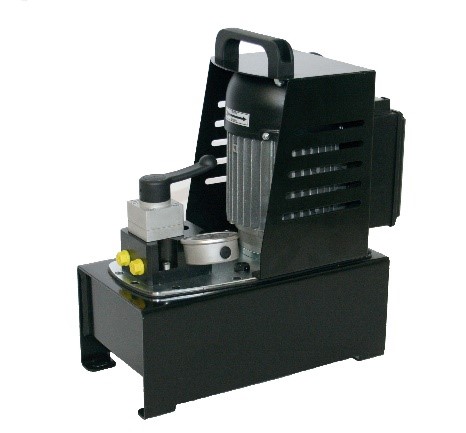

Among the electro-hydraulic power units of the EDP Series manufactured by BELL there is the EDPL250DE double stage and double acting pump with an oil capacity of 5L. Push-button operated (electric motor) and a 4/3 way hand valve, it is recommended for any hydraulic application where an adequate oil flow rate (l/min) and an operating pressure up to 250bar are required. Functional and versatile, it has an extremely compact design with ergonomic handle and motor protection casing and is particularly suitable for guaranteeing maximum efficiency and long life, even in heavy use.

EDP Series:
Product line: Industrial tools, bodywork, auto repairers, lifting systems, clamping systems, punches, hydraulic cutters, bead breakers, shearing machines

Main features:

• Ultra compact
• Low pressure gear pump (max 250bar)
• Operation with external power supply (socket)
• Motor protection casing for heavy duty and durability
• Extremely compact design with ergonomic handle for maximum portability
• Push button operation (electric motor)
• Hand valve 4/3 700bar
• Double acting cylinder compatibility
• Easy maintenance
• Refill oil cap
• Preset internal maximum oil pressure output valve to protect the circuit parts against overloads
• Pressure gauge
• Oil tank capacity 5L

Technical features:

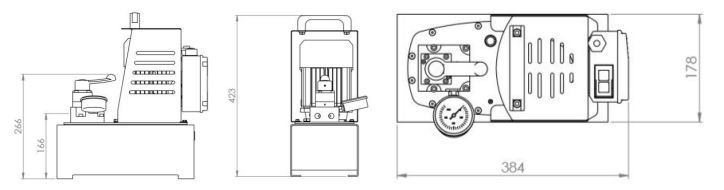

Size:

Oil flow (l/min) diagram:

Series comparison:

Pump accessories

• Pressure gauge

Spare parts

• SEAL KIT EDPL

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
