Description
Resistant and stable, the PA6-GF30 fiberglass polyamide oil tanks are suitable for customizing the air-hydraulic pumps of the HP Series

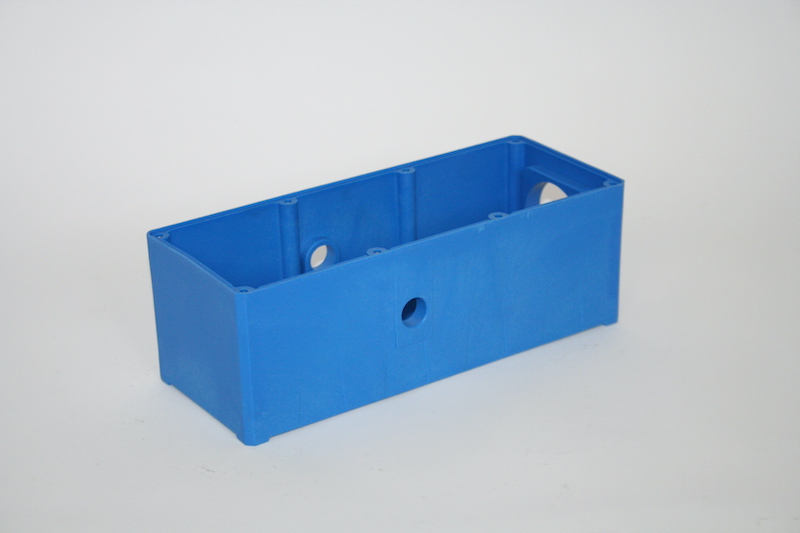

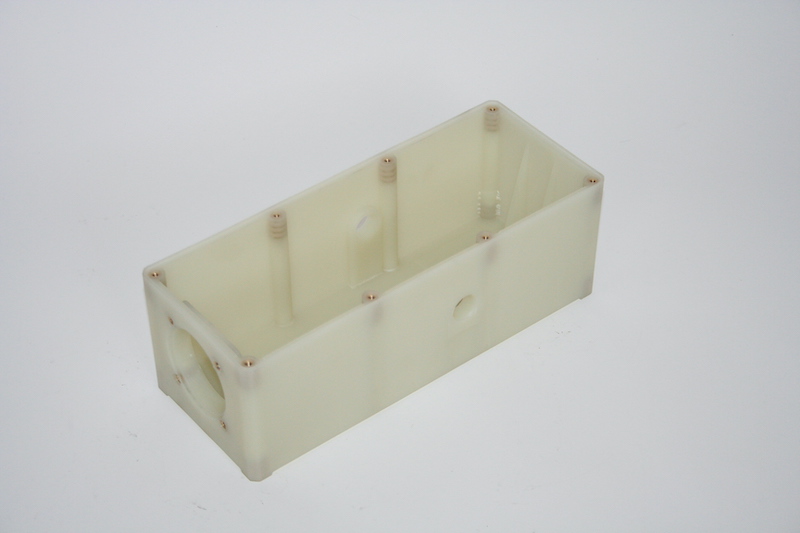

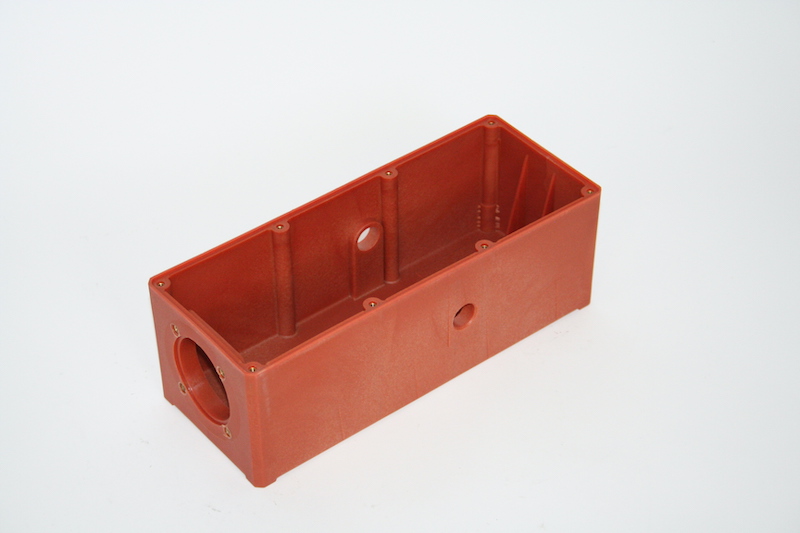

We manufacture colored oil tanks for the customization of the air-hydraulic pumps of the HP Series with an oil capacity of 1,4 liters.
Made of polyamide reinforced 30% with glass fibers PA6-GF30, the colored oil tanks for the air-hydraulic pumps of the HP Series have high quality features such as a mechanical resistance, rigidity and a dimensional stability. Such features make them suitable for an use even in hard conditions like a prolonged exposure to high static loads and high temperatures.
Colored oil tanks for the HP Series air-hydraulic pumps: features
- Made of PA6-GF30 fiberglass polyamide
- Composition Ultramid B3EG6 EQ bk 23189
- Very high mechanical resistance
- Resistant to various oils, greases and fuels
- Good wear resistance
- Easily welded and glued
- High dimensional stability
- Good thermal distortion temperature
- Good workability
- 1.4 L capacity (1.1 usable oil)
- RAL-type colors (more colors on demand)
To order
- 309310010 HP OIL TANK WHITE
- 309310014 HP OIL TANK ORANGE
- 309310016 HP OIL TANK BLU RAL5015
- 309310011 HP OIL TANK BLACK
- 309310012 HP OIL TANK RED
NOTE: other RAL colors upon request (MOQ)
All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
