Pressure gauge kit for the UPF air-hydraulic foot pumps of the UP Series

We design and manufacture kits for the installation of a pressure gauges on the UPF air-hydraulic foot pumps, the pressure gauge is included in the installation kit.

Write us a request for more information

Description

The pressure gauge for the UPF air-hydraulic pumps is included in the installation kit

We design and manufacture kits for the installation of a pressure gauges on the UPF air-hydraulic foot pumps, the pressure gauge is included in the installation kit.

Pressure gauge kit for the UPF air-hydraulic foot pumps: features

Accessories Series
Product line: UP Series, UPF, air-hydraulic pumps

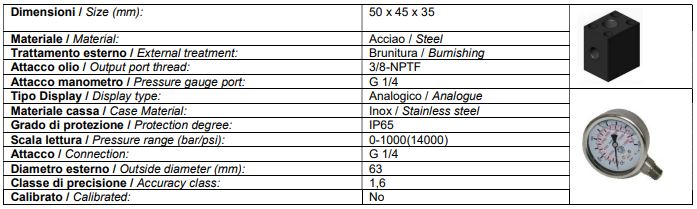

  • Complete kit for installing a pressure gauge on the UPF pump type
  • Main driving block with front holes
  • Additional 3-way pressure gauge block
  • Oil port 3/8”NPTF
  • Pressure gauge Ø63mm, range 0-1000bar
  • Gauge port 1/4″G
  • Fixing screws to the main driving block
  • Blocks treated with anticorrosion against external agents for maximum durability over time

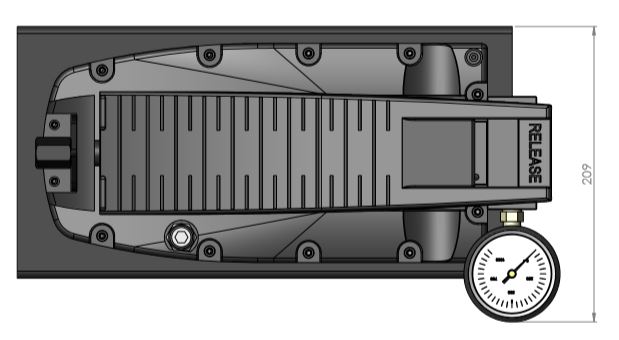

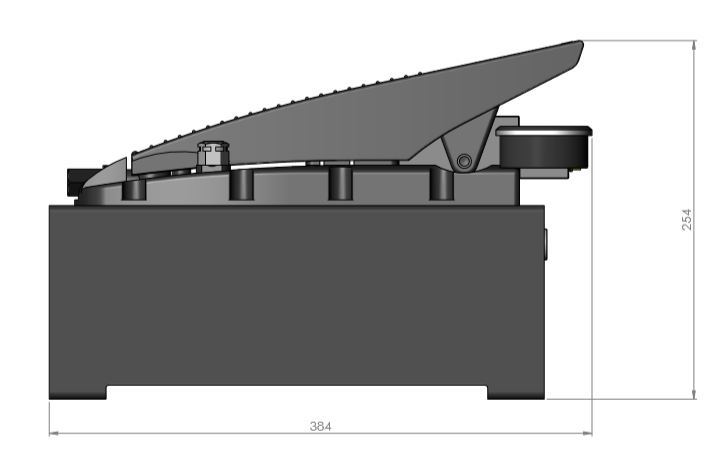

Size

To order

CP2018005 PRESSURE GAUGE KIT UP

All BELL products are designed and manufactured within BELL SRL in via F. De Pisis, 5 – 42124 Reggio Emilia (RE) – Italy, according to the Quality Standards that distinguish the MADE IN ITALY from the Rest of the World.
